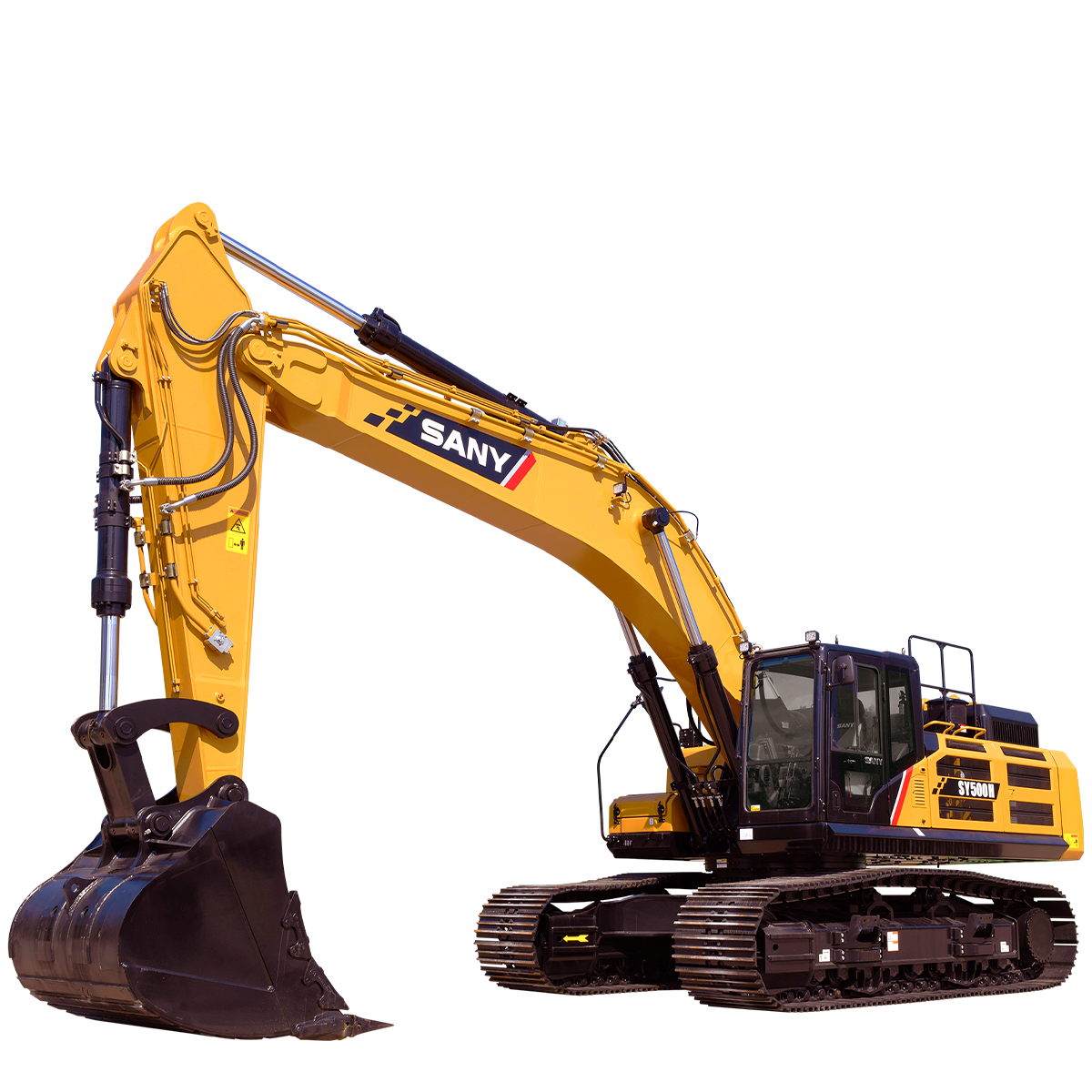

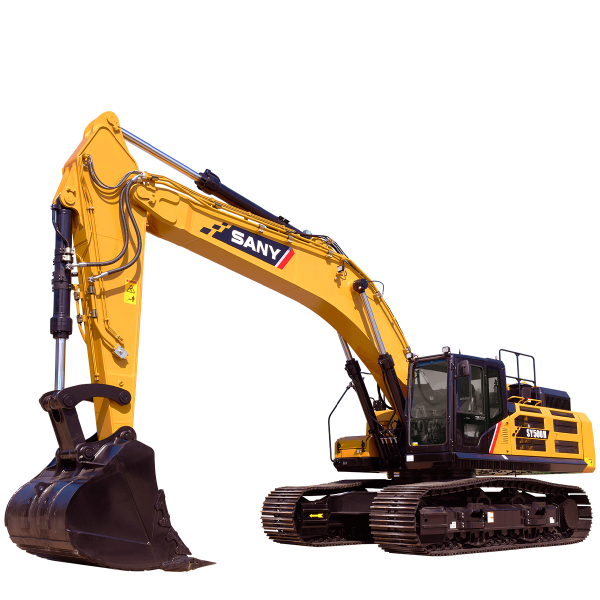

SY500H

Large Excavator

SANY’s most powerful large excavator, the SY500H is a powerhouse, boasting 400 HP and a digging depth of over 25 feet. A durable Cummins diesel engine delivers the performance you need for any job, while the selectable working modes allow you to match performance to the job application to balance power and efficiency. Positive flow hydraulics further improve operating efficiency, while fuel-efficient design features help you save on fuel costs.

Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications
Upgraded cab with 10″ touch screen display, with standard ROPS/FOPS
Auxiliary controls through the display
A high-performance cooling system equipped with electronic control fan clutch provides clean, quiet operation
Selectable working modes match machine performance to the application, maximizing productivity and minimizing operating costs
Removable counterweight reduces travel restriction and lowers transportation expenses
61,822 lbf of bucket breakout force and 46,535 lbf of arm digging force
Long stick configuration available

Operating Weight

120,152 lbs

54,500 kg

Gross Power

399.6 hp

298.0 kW

Dig Depth

25' 3"

7,705 mm

Call for Pricing

Model	SY500H Large
Boom Length	7,000 mm23'
Stick (Arm) Length	––
Transport Length	12,194 mm39' 11"
Transport Width	3,640 mm11' 11"
Transport Height	3,874 mm12' 8"
Upper Structure Width	3,292 mm10' 10"
Cab Height	3,423 mm11' 3"
Blade Height	––
Track Width (standard shoe)	900 mm35"
Track Gauge	2,740 mm9'
Ground Clearance (minimum)	560 mm22"
Tail Swing Radius	3,850 mm12' 8"
Track Length on Ground	4,412 mm14' 6"
Track Length	5,459 mm17' 11"

Model	SY500H Large
Operating Weight	54,500 kg120,152 lb
Ground Pressure	59.0 kPa8.6 psi
Engine	Cummins QSG12
Displacement	11.8 L720.1 in³
Gross Power	298 kW400 HP
Hydraulics	Positive Flow Control with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	720.0 L/min190.2 gal/min
Operating Pressure (maximum)	34.3 MPa4975 psi
Power Boost Pressure (maximum)	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa4,975 psi
Travel Speeds (maximum)	3.4 km / 5.2 hr2.1 / 3.2 mph
Travel Effort (maximum)	214.0 kN48,109 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	27.5 MPa3,989 psi
Swing Speed (maximum)	8.0 rpm
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	35"900 mm
Track Rollers (per side)	9
Carrier Rollers (per side)	2

Model	SY500H Large
Boom Length	7,000 mm23'
Stick (Arm) Length	3,350 mm11'
Maximum Digging Height	10,929 mm35' 10"
Maximum Dumping Height	7,647 mm25' 1"
Maximum Digging Depth	7,705 mm25' 3"
Maximum Vertical Wall Digging Depth	6,278 mm20' 7"
Maximum Reach at Ground Level	12,035 mm39' 5"
Maximum Swing Radius	5,216 mm17' 1"
