STH844A

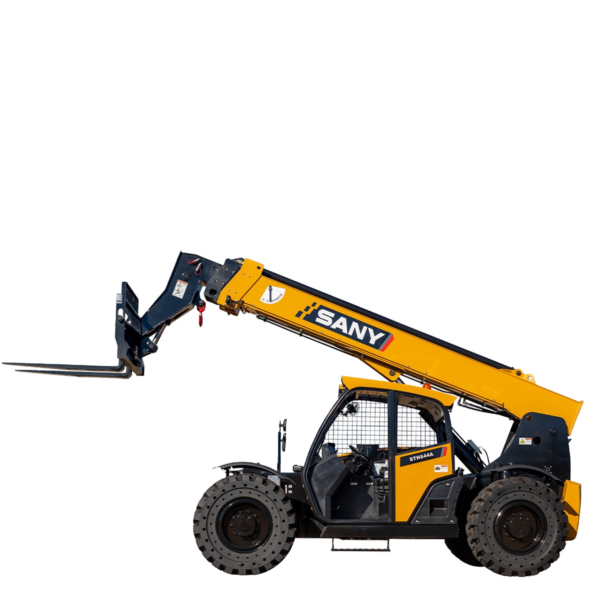

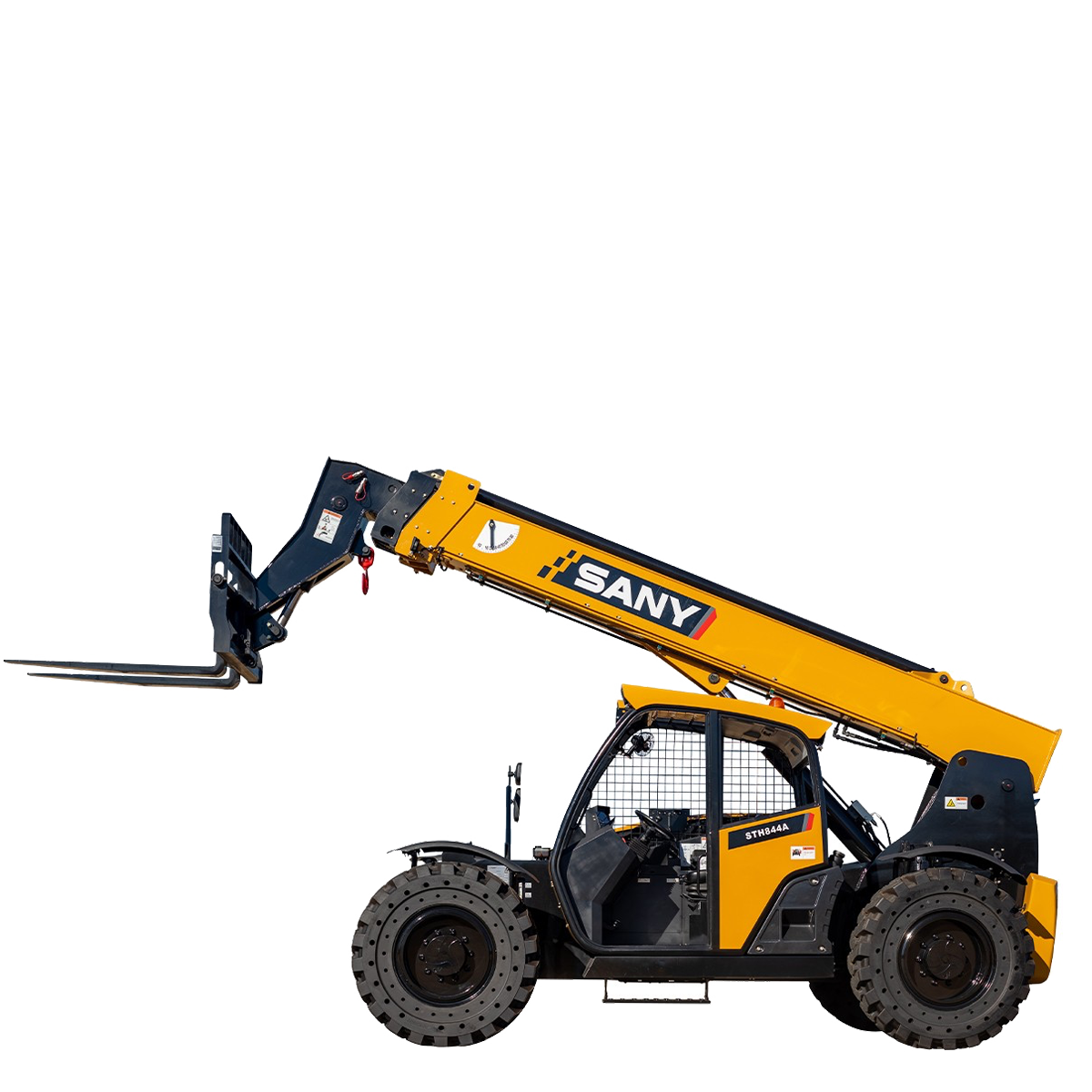

Model	STH844A Telehandler
Maximum Lift Capacity	3,629 kg8,000 lbs
Lift Capacity at Maximum Height	2,722 kg6,000 lbs
Lift Capacity at Maximum Reach	681 kg1,500 lbs
Boom (Raise/Lower)	13 seconds13 seconds
Boom (Extend/Retract)	16 seconds16 seconds
Frame Leveling	+/- 10 degrees
Maximum Drive Speed	23 kph14 mph
Outside Turning Radius (4WS)	4.30 m14' 1"
Auxiliary Hydraulic Flow	63 L/min17 gpm
Auxiliary Hydraulic Pressure	17 MPa2,466 psi
Standard Tire Size	13.00-24

Model	STH844A Telehandler
Engine	Deutz TCD 3.6
Transmission	Dana VDT12000
Axles F/R	Dana 212Dana 212
Hydraulic Pump	Kawasaki Load Sense Piston Pump
Hydraulic Manifold	Parker
